Product Description
· Core Materials: The valve body, ball, and stem are made of SS304/316/316L precision-cast stainless steel, which is resistant to acids, alkalis, salt spray, and various corrosive media. It carries no risk of impurity precipitation, thereby ensuring fluid purity. The valve seat is made of pure PTFE, and the stem seal is equipped with FKM/ FFKM O-rings. This dual-seal design achieves dual zero leakage for both the main passage and the bypass.
· Structural Design: It offers two core flow channel designs: L-port (switching) and T-port (diverting/mixing). The L-port achieves 90° directional switching control of the media, while the T-port supports media diverting, mixing, and multi-directional switching, meeting the control logic requirements of different pipelines.
· Connection & Drive: Standard connections include clamp (tri-clamp), flange, and thread. No on-site adapters are required, allowing direct connection to various pipelines and adapting to different installation processes. Drive types are available in manual, electric, and pneumatic options, flexibly accommodating the integration needs of both manual operation and automated control systems.
Technical Parameters
· Nominal Diameter: DN25-DN125 (1” - 5”), with full specifications covering the complex control needs of various industrial fluid pipelines.
· Pressure Rating: Standard PN16; custom high-pressure models can reach PN40/PN64 to meet high-pressure fluid transportation conditions.
· Working Temperature: Standard type -40℃ to 120℃; custom high-temperature models can reach up to 200℃, accommodating the control of media at different temperatures.
· Flow Capacity: Kvs value ranges from 18 to 400 m³/h. The full-port design significantly reduces fluid resistance and improves system transportation and regulation efficiency.
· Actuator Torque: 10Nm - 40Nm. The torque is precisely matched for 90° fast switching, ensuring smooth and reliable drive operation.
· Protection Class: Electric and pneumatic actuators offer multiple protection ratings including IP54/IP66/IP67, adapting to complex installation environments such as outdoor, humid, and dusty conditions.
· Applicable Media: Water, ethylene glycol mixtures (concentration < 60%), deionized water, fluorinated fluids, oils, acid/alkali corrosive media, and other types of industrial fluids.
product feature
· Full-Port, Low-Resistance & High-Efficiency: The internal channel of the valve body is completely consistent with the inner diameter of the pipeline, with no throttling or reduced-port structure. This maximizes the reduction of pressure loss during fluid switching and diverting, improves system flow efficiency, prevents media retention and deposition, and lowers pipeline maintenance costs.
· Comprehensive Zero-Leakage Sealing: Featuring a PTFE seat and FKM/FFKM dual stem seal design, the gas tightness meets the Rate A standard. Zero leakage is achieved in both the main passage and the bypass, completely eliminating media loss and leakage hazards, and ensuring the safety and stability of fluid system operations.
· Omnidirectional Stable Installation: It supports installation in any direction (horizontal or vertical) without compromising performance, facilitating flexible pipeline layout. The precision-cast valve body features high structural strength, as well as shock and vibration resistance, making it suitable for long-term continuous operation in industrial systems.
· Sanitary-Grade Process Compatibility: Featuring an anaerobic adhesive-free design and one-piece welded sealing, it complies with FDA sanitary standards. The surface can be customized with sanitary-grade mechanical polishing, making it suitable for sanitary working conditions with high requirements for fluid purity, such as food and pharmaceuticals, and biochemicals.
Related Products
![Shut-Off Damper SSGD]( "Shut-Off Damper SSGD")
Shut-Off Damper SSGDThe Shut-off Damper is designed for airflow isolation and shutoff control in marine, offshore, and industrial ventilation systems, suitable for high-pressure systems where airtightness, structural strength, and reliability are critical. It provides rapid and reliable airflow cutoff under both normal and emergency operating conditions, and is applicable for isolating air, hazardous gases, and other process media.Learn More
![three-way ball valve]( "three-way ball valve")
three-way ball valveAs a core component for achieving flow direction regulation in industrial fluid control systems, the three-way full-port stainless steel ball valve is specifically designed for various complex fluid transportation scenarios. Integrating the advantages of a full-port high-flow design and multi-channel flexible control, it efficiently achieves media switching, diverting, and mixing operations. Relying on premium stainless steel materials and outstanding sealing technology, the product features corrosion resistance, low resistance, and zero leakage. It adapts to multiple types of media and complex working conditions and is widely used in numerous fields such as petrochemicals, food and pharmaceuticals, HVAC, and data center fluid control. Supporting both manual and automated drive forms, it provides precise, reliable, and flexible flow and direction control solutions for fluid systems across various industries.Learn More
![Spiral Duct]( "Spiral Duct")
Spiral DuctGalvanized steel ducts are suitable for indoor, non-corrosive environments such as ship accommodation areas, engine-room ventilation, data centers, and new energy facility systems. Manufactured using standardized processes, they meet HVAC supply and exhaust air requirements and offer good formability and cost efficiency, making them one of the most commonly used duct types for industrial and commercial ventilation systems.Learn More
![flue gas valve]( "flue gas valve")
flue gas valveIn response to the strict requirements of the MARPOL 73/78 Convention regarding the prevention of air pollution from ships, the desulfurization and denitrification flue gas valves supplied by Firsquare are specifically designed for scrubber systems purifying combustion exhaust gas. As a key component controlling the flow of diesel engine exhaust, it can effectively handle harsh exhaust environments characterized by high temperatures, multiple impurities, strong corrosion, and high carbon content. Relying on its outstanding features of a long service life and a zero leakage rate, this product is not only an ideal choice for marine desulfurization and denitrification systems but also widely applicable to various severe industrial flue gas treatment scenarios.Learn More
![Marine Stack Closable Louver]( "Marine Stack Closable Louver")
Marine Stack Closable LouverFirsquare marine and offshore louver series is specifically engineered to meet the rigorous ventilation and protection demands of steel vessels, offshore structures, and harsh industrial environments. Our comprehensive product line—featuring Fixed Steel Louvers, Stack Closable Louvers, and Pneumatic Louvers—combines highly efficient airflow regulation with exceptional weathertight sealing capabilities. Manufactured in strict compliance with marine industry standards, our products are built to effectively withstand wind, rain, and sea spray under severe maritime conditions. Whether for standard cabin external closures, stack exhaust protection, or rapid pneumatic control in machinery spaces and fire safety systems, Firsquare louvers deliver robust durability, corrosion resistance, and dependable operation, providing a complete safety and professional airflow management solution for your maritime assets.Learn More
![Zero-Leakage Sealed Damper]( "Zero-Leakage Sealed Damper")
Zero-Leakage Sealed DamperThe zero-leakage sealed damper is a core control component in HVAC and fluid control systems, designed specifically for high airtightness and zero media leakage requirements. Through the combination of a precise sealing structure and special materials, it achieves absolute blockage of airflow and fluids, maintaining its sealing performance even under severe conditions such as positive and negative pressure fluctuations. It is an essential device for scenarios involving high-level biosafety, cleanliness control, and hazardous media isolation, widely used in fields with extreme sealing and safety requirements such as petroleum, chemical, biopharmaceutical, semiconductor, marine, and nuclear power industries.Learn More
![Variable Air Volume Damper]( "Variable Air Volume Damper")
Variable Air Volume DamperThe VAV (Variable Air Volume) damper is a core air volume control component in HVAC systems, specifically designed for building scenarios with strict requirements for air quality and airflow regulation. With its precise air volume adjustment capabilities, it has become a key supporting device in modern HVAC systems, widely adaptable to various applications requiring dynamic control of air volume and static pressure.
This product is primarily suitable for hospitals, laboratories, cleanrooms, and other buildings with high requirements for air cleanliness, airflow stability, and air quality. It is perfectly adapted to ventilation systems that require real-time adjustment and precise control of air volume during operation. Additionally, it can be extended to indoor air static pressure regulation, branch duct static pressure regulation, and air volume and pressure control in all-air air conditioning systems, meeting the diverse ventilation and air conditioning process needs of different buiLearn More
![Watertight Damper - FSID]( "Watertight Damper - FSID")
Watertight Damper - FSIDThe Watertight Damper is a high-reliability isolation damper designed for naval vessels and other systems with extremely demanding requirements for sealing integrity, structural strength, shock resistance, and environmental durability. It achieves zero measurable leakage at a 1.0 bar pressure differential and provides verified watertight boundary integrity, suitable for complete airflow or medium isolation in mission-critical applications.Learn More

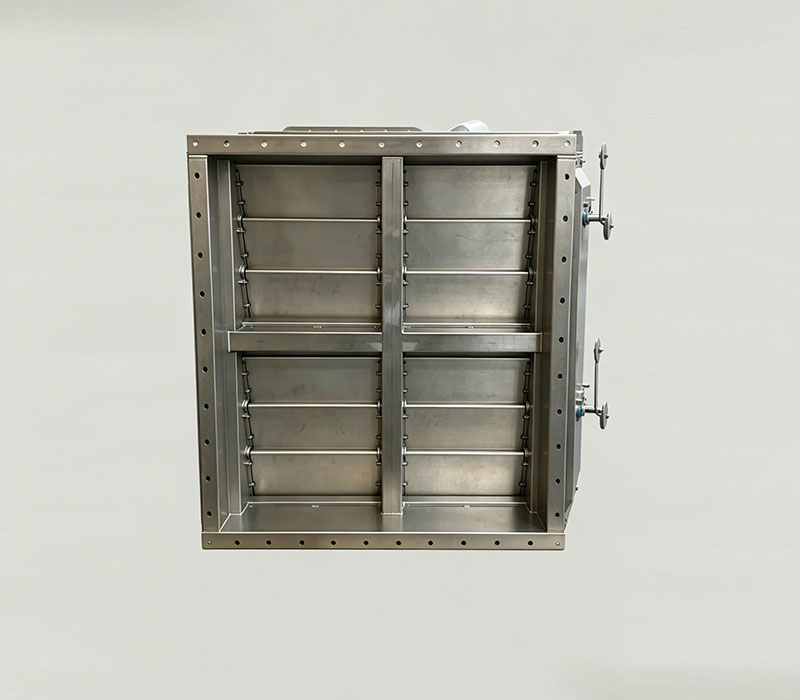

![Volume Control Damper SMBD]( "Volume Control Damper SMBD")
Volume Control Damper SMBDThe Volume Control Damper is designed for airflow regulation and isolation in marine, offshore, and industrial ventilation systems, suitable for high-pressure systems requiring reliable sealing, structural integrity, and operational dependability. It provides precise, reliable airflow control under both normal and emergency conditions, applicable for air, hazardous gases, and other process media.Learn More
![Pressure Relief Damper SPFD]( "Pressure Relief Damper SPFD")
Pressure Relief Damper SPFDThe Pressure Relief Damper is primarily used for overpressure protection and pressure balancing in marine, offshore, and industrial ventilation systems. When internal system pressure reaches the set value, the damper opens automatically to relieve pressure; it resets automatically once pressure returns to the normal range. This product is designed to protect ductwork, compartments, and equipment from abnormal pressure surges.Learn More
![Non-Return Damper SNFD]( "Non-Return Damper SNFD")
Non-Return Damper SNFDThe Non-Return Damper is designed to prevent backflow in marine, offshore, and industrial ventilation systems, ensuring unidirectional flow of the medium in the intended direction. It opens and closes automatically in response to system pressure differential changes, requiring no complex control systems, and is suitable for applications requiring backflow prevention, system protection, and operational reliability.Learn More

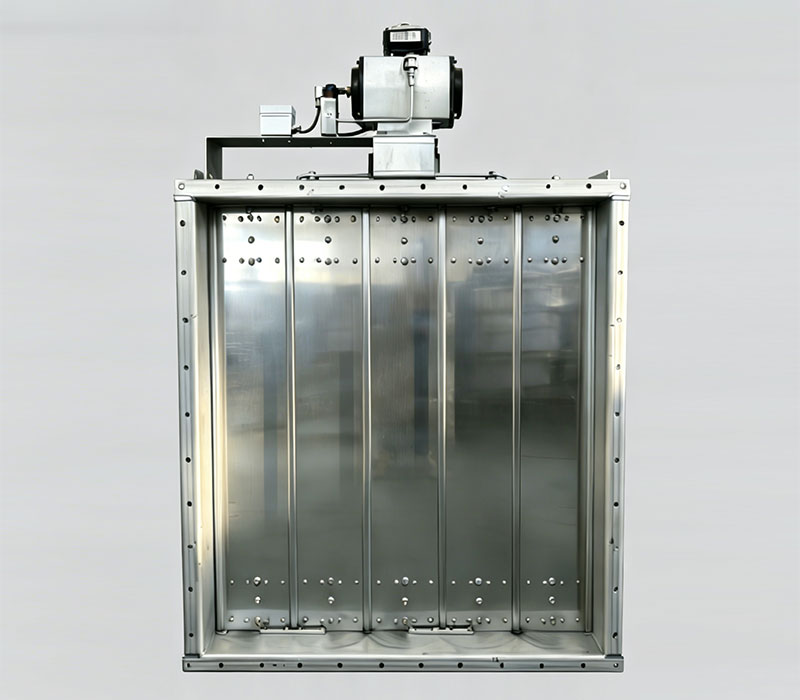

![ire & Gas Damper SFGD]( "ire & Gas Damper SFGD")
ire & Gas Damper SFGDThe Fire & Gas Damper is a high-integrity safety component for use in marine, offshore, and industrial HVAC systems, designed to prevent the spread of flames, smoke, and hazardous gases through ductwork. It combines excellent fire resistance, low-leakage performance, and corrosion resistance, and can be installed in fire-rated bulkheads, decks, and rectangular or circular duct systems, providing reliable isolation under both normal and emergency conditions.Learn More

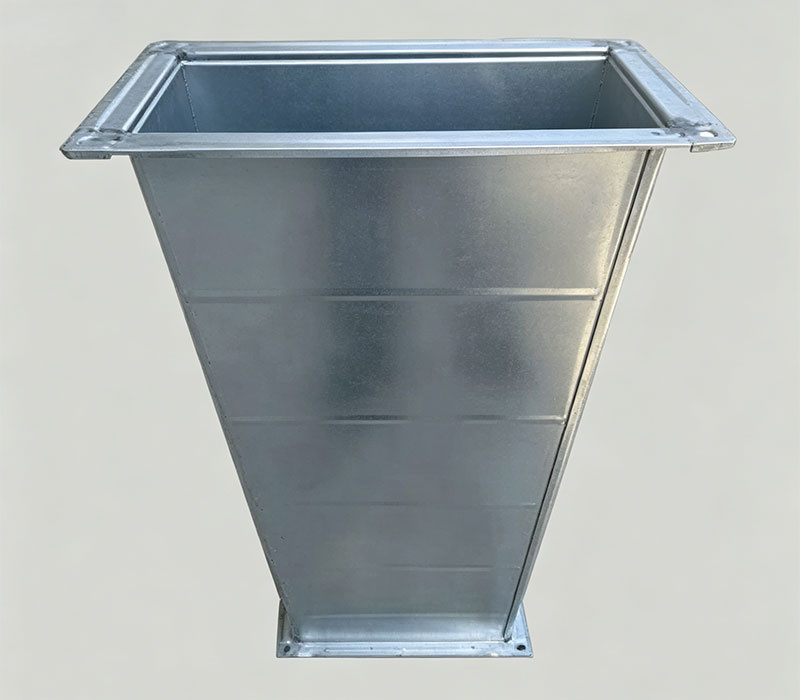

![Galvanized Steel Duct]( "Galvanized Steel Duct")
Galvanized Steel DuctGalvanized steel ducts are suitable for indoor, non-corrosive environments such as ship accommodation areas, engine-room ventilation, data centers, and new energy facility systems. Manufactured using standardized processes, they meet HVAC supply and exhaust air requirements and offer good formability and cost efficiency, making them one of the most commonly used duct types for industrial and commercial ventilation systems.Learn More

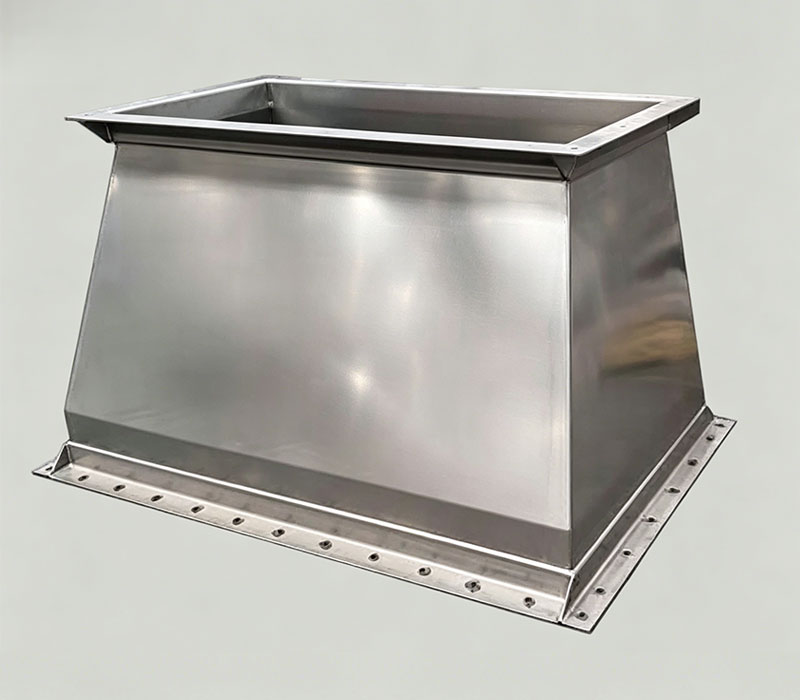

![Stainless Steel Duct]( "Stainless Steel Duct")
Stainless Steel DuctStainless steel ducts are suitable for outdoor applications or corrosive indoor environments such as chemical plants, battery rooms, and offshore equipment spaces. With excellent corrosion resistance and airtightness, they are ideal for HVAC systems in offshore facilities, marine vessels, onshore oil & gas, the nuclear industry, data centers, and new energy installations, ensuring long-term reliable operation under harsh conditions.Learn More
![vent silencer]( "vent silencer")
vent silencerTo mitigate the high-decibel noise generated during LNG carrier operations, Firsquare supplies dedicated exhaust silencers (DN50-DN150) specifically engineered for harsh cryogenic, corrosive, and explosion-proof marine environments. Integrating advanced acoustic technology and low-temperature resistant designs, these silencers efficiently attenuate noise from natural gas, BOG, and nitrogen emissions down to industry standards. While adapting to limited shipboard spaces and ensuring unobstructed exhaust flow, they provide a highly reliable, compliant, and low-noise acoustic solution for the safe operation of LNG carriers.Learn More
![Olive Vent Cow]( "Olive Vent Cow")
Olive Vent CowThe Olive Vent Cowl for LNG Vessels is a critical ventilation and protection device installed on exposed decks, cargo tanks and vent systems of ships. It is mainly used together with vent silencers, relief lines and pressure-vacuum valves. While ensuring normal ventilation and air exchange for compartments and pipelines, it effectively prevents intrusion of rain, wind, seawater, insects and foreign matters. With excellent salt-spray resistance, low-temperature toughness and robust structure, it fully meets marine standards and the strict requirements of LNG carriers for cryogenic, explosion-proof and high-corrosion protection service.Learn More

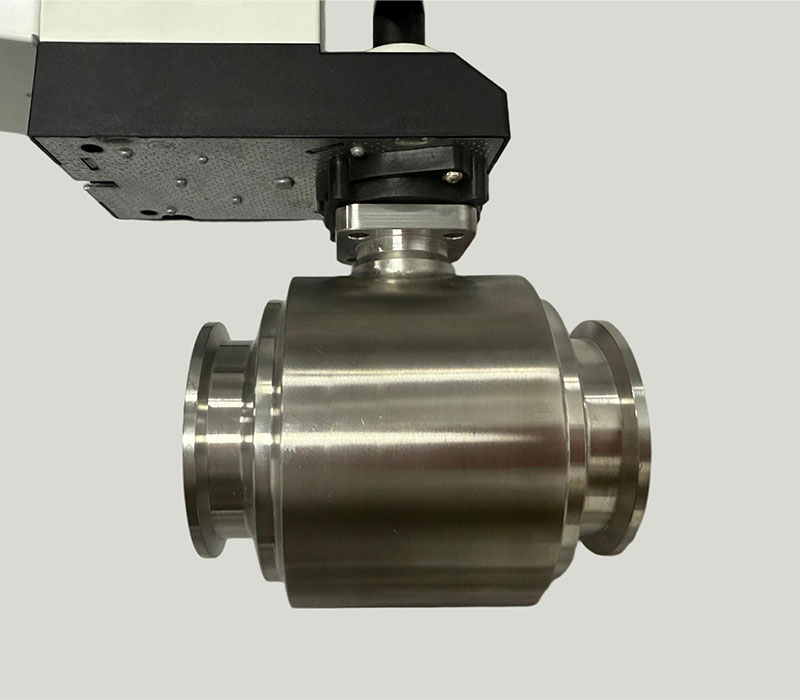

![two-way ball valve]( "two-way ball valve")
